Floorplan - 2016 American Coach American Revolution 39A
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1 of 31
+31- Our Price: $205,995
- List Price: $385,156
- Discount: $179,161
Payments From:
$1,436 /mo.
-
Sleeps 4
-
4 Slides
-
Rear Bedroom
-
40ft Long
-
Cashmere Sand, Cayenne, Daybre

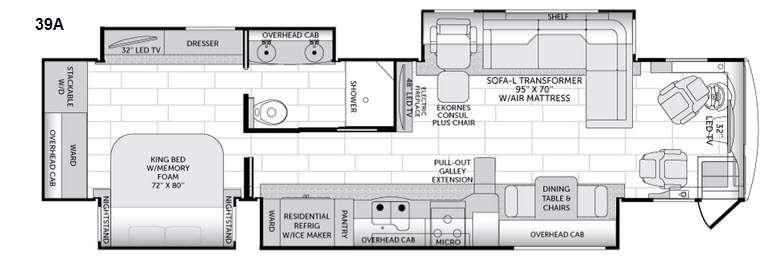

39A Floorplan
39A Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 4 |
| Length | 40 ft | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 11 in | Int Height | 7 ft |
| Interior Color | Cashmere Sand, Cayenne, Daybre | Exterior Color | Cashmere Sand, Cayenne, Daybre |
| Hitch Weight | 10000 lbs | GVWR | 38600 lbs |
| Fresh Water Capacity | 100 gals | Grey Water Capacity | 60 gals |
| Black Water Capacity | 40 gals | Fuel Type | Diesel |
| Miles | 43000 | Engine | Cummins ISL9 |
| Chassis | Liberty 450 | VIN | 4UZACGCY5GCHH5726 |
Description
Description
As you enter the American Revolution 39A by American Coach you will find that there are quad slides and a very open and spacious living and kitchen area.
Along one side of the motor home the slide has a dining table and chairs, a pull-out galley extension, three burner range, microwave, double kitchen sink, pantry, refrigerator with ice maker, and additional pantry. The opposite side of the motor home has a slide with a sofa l-transformer with air mattress, and Ekornes Consul Plus chair. Adjacent to the slide there is a 48" LED TV with an electric fireplace below the TV. Featured above the front cab is a 32" LED TV.
The rear bedroom has two slides, a stackable washer and dryer, and a large wardrobe. The king bed and nightstands are on a slide. Across from the bed there is another slide with a 32" LED TV, dresser, and the slide continues into the bathroom with two sink and an overhead cabinet. Also in the bathroom you will find a toilet and shower, plus so much more!
Available options may include: washer/dryer ready, and a king bed with air mattress.
Features
Features
Standard Features (2016)
General Interior
- 12V LED Ceiling & Task Lighting
- 30" Deep Slide-Outs (39A, 42T, 42W)
- Coffered Ceilings w/Crown Molding
- Fan-Tastic® Rain Sensor Power Roof Vents w/3-Speed Fan
- Flush Bolt Latch Hardware on Pocket Doors
- Hardwood & Fabric Window Treatments
- Heated Polished Porcelain Tile Floor
- Ozite Lined Cabinet Interiors
- Pop-Up Outlet at Dinette Countertop w/USB Outlets
- Premium Hardwood Cabinet Doors
- Premium Hardwood Face-Framed Cabinetry & Moldings
- Solid-Surface Entry-Step w/LED Accent Lights & Power Cover
Options
- Canadian Standards Build
- Custom Interior Request
- Factory V.I.P. Delivery
Driver Convenience
- Adjustable Brake & Throttle Pedals
- Auxiliary Fog Lights
- Auxiliary Start Switch
- Chrome, Heated Side-View Mirrors w/Remote Adjustment & Turn Signal Indicators, Integrated Side Vision Cameras
- Denso Dash Climate Control
- Driver & Passenger LED Reading Lights
- Dual-Dash Monitor Design
- I.C.C. Light Switch
- Keyless Entry Door Access w/Key Fob
- Multiple Auxiliary 12-Volt (2) USB Dash Receptacles
- One-Piece Windshield Bonded to Steel
- Power Windshield Privacy Blinds & Shades
- Soft-Touch Smart Steering Wheel
- Tag Axle Dump Switch (42G, 42T, 42W)
- Tilt Steering Wheel & Gauge Cluster Pod
- Top-Mounted Intermittent Windshield Wiper System w/Wet Arm
- Villa® 6-Way Power Driver Seat w/Heat, Manual Lumbar & Adjustable Arms (Ultraleather™)
- Villa® 6-Way Power Passenger Seat, Seat w/Heat, Manual Lumbar, Adjustable Arms & Electric Footrest (Ultraleather)
Electronics
- Color Camera Monitor w/One-Way Audio
- Sony Rear-View Camera
- Xite Touch Screen Dash Radio w/GPS Navigation & Sirius Satellite Radio(Subscription Required)
Living Area
- Central Vacuum System
- Centralized Command Center
- Dimmable Ceiling Lights
- Large Passenger Window
- Power Day/Night Roller Shades
- Raised-Panel Cabinet Doors
Electronics
- Electric Fireplace (39A, 42G)
- Front Overhead Sony 32" LED HDTV (39A, 42T, 42W)
- Sony 48" LED HDTV (Mid-Ship)
- Sony® Blu-ray® Home Entertainment System w/Wi-Fi
- Winegard In-Motion Satellite System
Options
- Sony 40" LED HDTV (Front 42G)
Galley
- Adjustable Shelves
- Decorative Backsplash
- Dishwasher Drawer w/Cabinet Wood Front
- High-Rise Galley Faucet w/Pullout Sprayer
- LED Task Lighting
- Polished Solid-Surface Countertop & Flush Sink Covers
- Roller Bearing Full-Extension Drawer Guides
- Solid Hardwood Drawer Fronts
- Under Counter LED Accent Lights
- Under-Mounted Stainless Steel Double-Bowl Sink
Appliances
- Convection Microwave Oven
- Flush-Mount Electric 2-Burner Induction Cook-top
- French Door Refrigerator w/Ice maker In Door
Bedroom
- Cedar-Lined Wardrobe
- Exclusive Serenity Max Series w/Adjustable His & Her Section & Head & Foot Massage Component Included (42G)
- Exclusive Serenity Series King Mattress w/Signature Memory Foam (39A, 42T, 42W)
- Hardwood Doors
- Hardwood Framed Headboard w/Padded Fabric Accent
- Lift-Up Bed w/Under-Bed Storage (N/A 42G)
- Polished Solid-Surface Nightstand Tops
- Remote Generator Start Switch
- Shoe Storage
Electronics
- Sony DVD Player
- Sony 32" LED HDTV
Appliances
- Stacked Washer/Dryer
Options
- King Air Mattress w/2 Remotes (39A, 42T, 42W)
- Washer/Dryer Ready w/Shelves
Bathroom
- Double Roller Shades (Manual)
- Fiberglass Shower w/Molded Seat/Shelf
- Obscure-Style Decorative Shower Glass Enclosure
- Polished Solid-Surface Countertop w/Residential Faucet (Dual Vanity 39A)
- Residential Hand-Held Shower Head
- Skylight in Shower
- Tecma® Silence Plus 2-Button Porcelain Vacuum Flush Toilets (2)
- Under-Mount Glass Bowl Sink (39A)
Furniture
- Decorative Dinette & Folding Guest Chairs (N/A w/Face-to-Face Dinette Options)
- Dinette w/Deep-Base Cabinet Storage, File Storage & Slide-Out Laptop Tray
- Polished Solid-Surface Dinette Table w/Slide-Out Extension
- Villa Ultraleather Sofa w/Removable Arms (42T)
- Villa Ultraleather Transformer Sofa Bed w/Air Mattress (39A, 42G)
- Villa® Ultraleather™ Sofa Bed w/Air Mattress (42T, 42W)
Options
- Villa Ultraleather Dinette Face-to-Face Dinette Ensemble (42T, 42W)
- Villa Ultraleather Sofa Bed w/Air Mattress (w/Ensemble - 42W)
Plumbing / Electrical
- Aqua-Hot® 400D Multi-Zone Hydronic Heating System
- Energy Management System (50 Amp)
- Heat Pump on Rear AC Unit
- Heated Water & Holding Tank Compartments
- Holding Tanks San-T-Flush™ System
- Inverter & Battery Monitor
- Multi-Point Water Pump Switching
- PEX Plumbing System
- Pure Sine Wave Inverter/Charger (2800w)
- SensaTank™ Level Monitoring System (Interior)
- Surge Guard™ Electrical System Protection
- Three 15.0M Roof Air Conditioners (42G ,42T, 42W)
- Two 15.0M Roof Air Conditioners (39A)
- Variable-Speed Water Pump
- Waste Management System (Macerator)
- Whole-Coach Water Filtration System
Safety
- 3-Point Integrated Seat Belts at Driver & Passenger Seats
- Carbon Monoxide (CO) Detector
- Daytime Running Lights
- Emergency Egress Window
- Fire Extinguisher
- Lighted Exterior Grab Handle
- Momentary Courtesy Lighting at Entry & Passenger Area
- Scare Lights
- Side Docking Lamps
- Side Turn Signal Indicators
- Smoke Detector/Alarm
- Solid-Surface Entry-Step w/LED Accent Lights, Power Cover, Grass Cloth Inserts & Storage
General Exterior Amenities
- (8) Maintenance-Free House Absorbed Glass Mat 6-Volt Batteries (Group GC2)
- 1st Full Bay 90" Slide Tray
- Battery Disconnect Switches for House & Chassis
- Brushed Stainless Kick Plate Under Entry Door
- Convenience Light in Utility Compartment
- Cummins Onan® 10.0 kW Quiet Diesel Generator on Power Slide-Out (42G, 42T, 42W)
- Cummins® Onan® 8.0 kW Quiet Diesel Generator on Power Slide-Out w/Automatic Start (39A)
- Electrical Outlets in Luggage Compartments
- Exterior Sidewall TV (Sony® 32" LED HDTV & Sony AM/FM/CD/DVD)
- Fresh Water Hose (25')
- Full-Width Rear Rock Guard w/Stainless Logo Panel
- Integrated Rear Upper Fiberglass Wing Deflector
- One Key System (Luggage & Entry Doors)
- Power Cord Reel (50 Amp)
- Power Double Entry Step
- Power Luggage Door Locks (Select Doors) w/Remote Key Fob
- Protective Front Mask
- Rear Engine Access Door w/Power Assist Struts
- Sidewall-Mounted Engine Air Intake
- Spray Wand w/Soap Dispenser & Paper Towel Holder
- Strut-Assisted Side-Hinged Luggage Doors
- Windshield Washer 1.5-Gallon Reservoir
Options
- 2nd Full Bay 36" & 54" Slide Tray
- 2nd Full Bay 90" Slide Tray
- Custom Exterior Paint Color Request
- Two-Piece Aluminum Rear Ladder
Construction
- 5-Layer Flooring w/3" Bead Foam Insulation
- 6-Layer Radius Roof w/Bead Foam Insulation
- Aluminum Framed Wall Construction
- Axalta™ Automotive Full Body Paint w/Sand & Buff High-Gloss Finish
- Central Electrical Panel for 120V/12V AC/DC
- Dense Bead Foam Insulation Throughout
- Fiberglass Front and Rear Quarter Panels
- Fiberglass Molded Front Bumper
- Full Fiberglass Front & Rear Caps
- Gel Coat Fiberglass Exterior Sidewalls w/No Wood Substrate
- Heated Water and Holding Tank Compartments
- Insulated Aluminum Framed & Paneled Luggage Compartment Doors
- One-Piece Molded Fiberglass Roof w/Radius Edges
- Pebble-Finished Fiberglass Basement Lining
- Sound Absorption Material Front, Rear & Engine
- Steel Construction on Front Bulkhead
- Vacu-bond™ Sidewall, Roof, Floor & Rear Wall
Awnings/Windows/Doors
- 30" Entry Door w/Deadbolt
- Entry Screen Door w/Logo Kick Plate
- Frameless Flush-Mount Windows
- Powered Entry Door Awning
- Slide-Out Mounted Girard Power Patio Awning w/Wind Sensor System
- Slide-Out Topper Awnings
- Window Awnings (Bedroom & Front Roadside)
Liberty Chassis
- Aluminum Wheels (6) 42G/42T/42W, (4) 39A
- Anti-Lock Brake System (ABS)
- Automatic 4-Point Hydraulic Leveling System
- Chassis Filter Service Center
- Custom-Tuned Sachs® Shocks
- Dual Fuel Fill Doors, Locking
- Electro-Coated Heavy-Duty Steel Bridge Structure
- Engine Block Heater
- Full Air Brakes w/Automatic Slack Adjusters
- Neway® Air Ride Suspension
- Side Radiator Configuration
- Two 1900 CCA Maintenance-Free Chassis Batteries
- ZF® Independent Front Suspension w/60-Degree Steering Angle
See us for a complete list is features and available options!
All standard features and specifications are subject to change.
