Floorplan - 2015 Newmar Bay Star 3103
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-


























































































































- Our Price: $77,995
- List Price: $140,122
- Discount: $62,127
-
Sleeps 4
-
2 Slides
-
Rear Bedroom
-
32ft Long
-
17,479 lbs

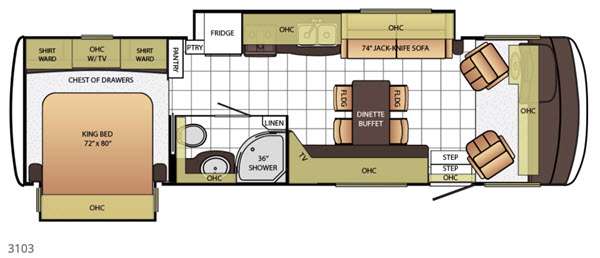

3103 Floorplan
Specifications
Sleeps | 4 | Slides | 2 |
Length | 31 ft 11 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 8 in | Int Height | 6 ft 8 in |
GVWR | 22000 lbs | Dry Weight | 17479 lbs |
Cargo Capacity | 4521 lbs | Fresh Water Capacity | 75 gals |
Grey Water Capacity | 60 gals | Black Water Capacity | 40 gals |
Furnace BTU | 40000 btu | Fuel Type | Gas |
Chassis | Ford F-53 | VIN | 1F66F5DY0F0A08553 |
Description
The Bay Star 3103 motor home by Newmar offers two slides and and a king bed.
As you enter the 3103, to the left is a buffet, and corner TV. The opposite side has a slide with a sofa, double kitchen sink, three burner range, refrigerator, and pantry. There is a second pantry next to the slide.
The bathroom has a linen cabinet, corner shower, sink, and toilet.
In the rear bedroom you will find a king bed slide, and two shirt wardrobes, a chest of drawers, and an overhead TV.
There are plenty of overhead cabinets throughout the motor home which provide much storage.
Features
Standard Features (2015)
Chassis
- Ford F-53 22,000 lb.
- Hydraulic Leveling Jacks with Automatic Control
- Cruise Control
- Tilt Steering Wheel
- Stainless Steel Wheel Simulators
- 13.5M Brisk® Central Air Conditioner
- Driver/Passenger Overhead Dash Fans
- Dash Heater and Air Conditioner
- Propane Gas Furnace with Ducted Heat
- Propane Gas Leak Detector
Appliances
- Three-Burner Range Oven
- Bi-fold Range Cover of Matching Countertop Material
- Norcold 8 Cu. Ft. Refrigerator with Black Front Panel
- 30" Over the Range Microwave Oven*
- 6 gal. Gas/Electric Water Heater with Electronic Ignition
Audio, Video & Accessories
- Sony LCD TV and DVD Player in Living Area and Bedroom (TV sizes vary per floorplan)
- AM/FM Dash Radio with CD Player and Bluetooth
- Rearview Colored Monitor System with Audio
- Winegard Digital TV Antenna
- Satellite Prep on Roof
Cabinets & Furniture
- Empire Maple Mitered Designer Glazed Cabinet Doors
- Concealed Hinges on Cabinet Doors
- Laminate Kitchen Countertop with Stainless Steel Sink and Two Sink Covers
- Laminate Countertop on Bedroom Nightstands and Chests
- Laminate Countertop in Bathroom with Acrylic Sink
- Residential-Style Full-Extension Ball Bearing Drawer Guides
- Pull-out Pantry Shelves*
- Flexsteel Ultralux Leather Furniture
- Passenger Seat Work Station
- Lifts on Bed Top
- Smooth-Top Mattress
Electrical
- 4.0 kW Cummins Onan Generator with Remote Switch and Automatic Changeover
- 30 Amp Electrical Service with Flexible Cord
- Two 12 Volt House Batteries
- Battery Disconnect Switch for House Battery
- 110 Volt Exterior Receptacle
- 12-Volt Auxiliary Receptacle on Dashboard
- 5 Watt Solar Panel to Charge Chassis Battery
- 45 Amp Converter
- Daytime Running Lights
- Emergency Engine Start Switch
- L Ceiling Lights Throughout
- Lighted Wardrobe
- Manually Operated Hold-To-Run Slideout Switch
- Recept with Built in USB Charger at Passenger Seat Area
Exterior
- Full-Paint Masterpiece Finish with Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Defrost
- Automatic Step for Entrance Door
- Lighted Exterior Storage Compartments with Cargo Liner
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Undercoating
- Mud Flaps
Interior
- Padded Vinyl Ceiling
- Day/Night Pleated Window Shades and Lambrequins
- Decorative Wall Art
- Mini Blinds in Kitchen and Bathroom Windows
- Vinyl Floor in Kitchen, Living Area and Bathroom
- Carpeting in Bedroom and on Slideout Floors
- Interior Assist Handle at Main Entrance Door
- Shoe Storage Located in Entrance Step Compartment
- Quilted Bedspread with Bed Scarf & Accent Pillow
- Inlayed Six Panel Design Interior Passenger Doors
- Auto Motion Power Shade at Windshield & Manual Shades at Driver & Passenger Side Windows
- Dash Panel Color Coordinated ABS
- 10 Bc Fire Extinguisher, Smoke Detector and Carbon Monoxide Detector
Plumbing & Bath Features
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic China Bowl Stool
- ABS Shower Surround with Shower Door
- Exterior Shower
- Systems Monitor Panel
Construction
- BriteTEK Roof with Walkable Decking
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Centers
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
Windows, Awnings & Vents
- One Piece Tinted Windshield
- Frameless Single Pane Tinted Safety-Glass Windows
- Power Vent in Bathroom and Kitchen
- Skylight above Shower
- Dometic 8500 Side Awning with Aluminum Weather Shield
- Dometic Slideout Covers
Air Conditioning & Heating
- 15.0M Penguin Heat Pump Central Air Conditioner
- Auxiliary Heater in Bedroom
- Two 13.5M Penguin Heat Pump A/C, 5.5 Onan Generator, 50 Amp Electrical Service with Energy Management System
- Fridgidaire 10 cf. Refrigerator with Dedicated 1000 Watt Pure Sine Inverter and 2 Extra Batteries
- 30" Convection Microwave with 3 Burner Cooktop
Audio, Video & Accessories
- Sony 32" LCD TV in Front Overhead
- Sirius Satellite Radio Capability with Antenna (Does not include monthly subscription)
- Sony Surround with Sub-Woofer
- Winegard Automatic Satellite Dish (Does not include receiver)
- High-Definition Wiring with Blu-Ray DVD Player
- Sideview Cameras
- Bisque Maple Mitered Designer Glazed Cabinet Doors
- Sienna Maple Mitered Designer Glazed Cabinet Doors
- Six way Power Driver's Seat
- Combination Desk/Dinette with Buffet Dinette Table with Four Chairs (Two Fixed, Two Folding)
- Combination Desk/Dinette with Free Standing Hidden Leaf Table with Four Chairs (Two Fixed, Two Folding)
- Free Standing Hidden-Leaf Dinette Table with Four Chairs (Two Fixed, Two Folding)*
- Hide-A-Bed Sofa on Off Door Side
- Off Door Side Fold & Tumble Sofa with Air Mattress
- Drop Down Bunk Bed Oven Driver/Passenger Seats
- Plush Pillow Top Mattress
- Under Mounted Solid Surface Kitchen Base Countertop with Undermounted Sink and Upgraded Faucet
- Cockpit Folding Dinette
Electrical Features
- 600 Watt Inverters for Living Area and Bedroom TVs
- Solar Prep Wire from Roof to Charge House Batteries
- 50 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
Exterior
- Convex Exterior Mirrors with Defrost and Remote Control
- Rear Ladder
Interior
- Vinyl Tile Floor in Kitchen, Living Area and Bathroom in Replace of Vinyl Floor
- Auto Motion Manual Window Shades
- 110 Volt Heat Pads for Holding Tanks
Construction
- Polar Pak R19 Battern Insulation in Roof
Windows, Awnings & Vents
- Frameless Double-Pane Tinted Safety Glass Windows
- Dometic Weather Pro Side Awning with Aluminum Weather Shield
- Rear Window in Bedroom
- Kitchen Window
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
